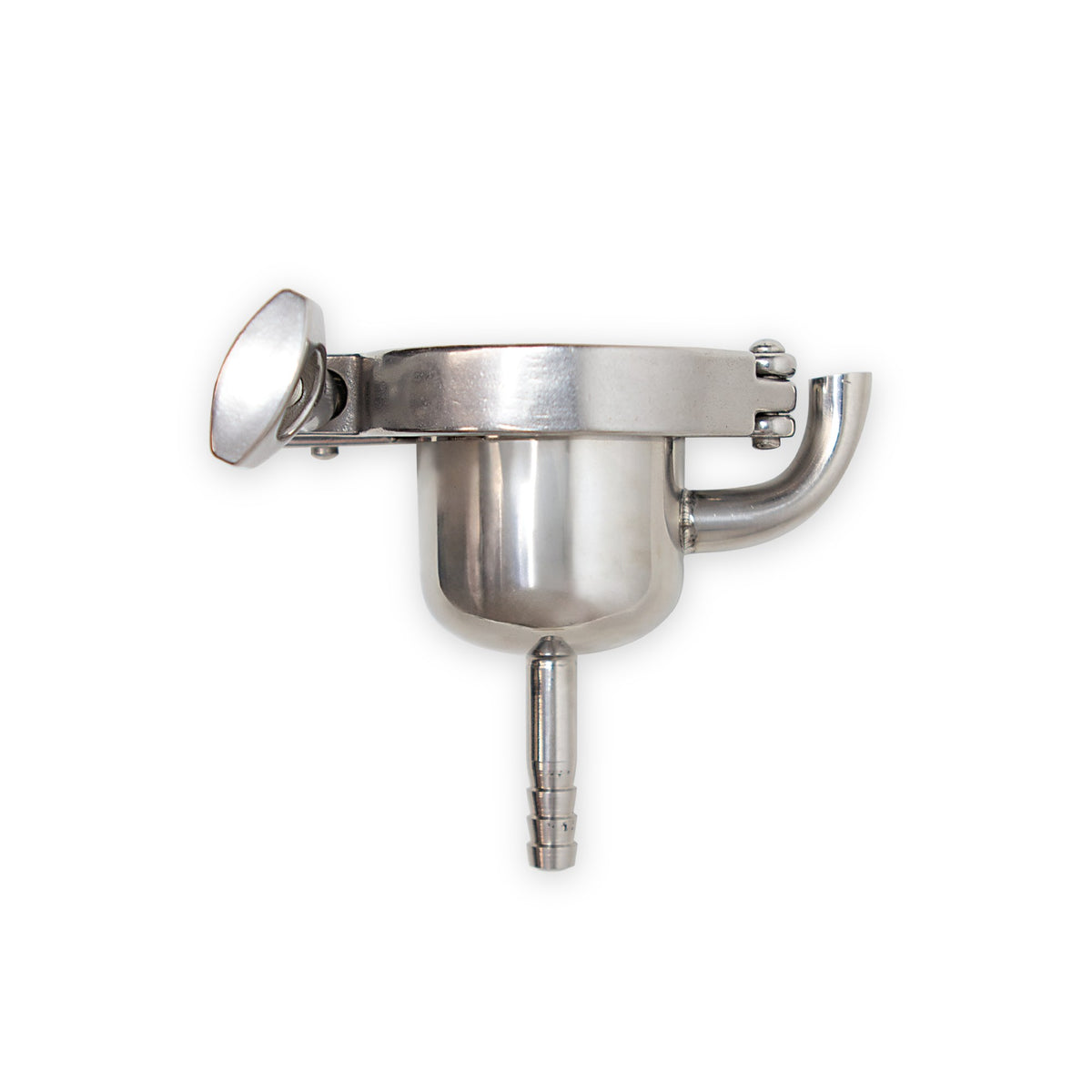

The Create+ Vented Collection Cup is designed for use with 2” tri-clamp compatible distilling systems. The stainless steel Vented Collection Cup integrates into a modular distilling system, facilitating the secure connection of distillate collection tubing while allowing safe venting of pressure during the distillation process.
Key features:
- Connects to 2" tri-clamp distilling accessories
- 304 grade sainless steel construction
- High temperature resistent food grade silicone
INSTRUCTIONS: Insert Collection Cup into your distilling system, ensure the vent weld is at least horizontal so that distillate flows out of the barbed tube, place a silicone gasket in the tri-clamp connection and secure with a tri-clamp.
CLEANING BEFORE USE: Rinse all components with fresh, clean water before the first distillation run.
CLEANING AFTER USE: If needed, thoroughly rinse the section to remove any wash or debris. Use a non-scented brewery cleaner and a soft brush to remove any stubborn debris.
CAUTION: After distillation is complete, the surface will be very hot. Allow to cool before handling.
What's Included
- Vented Collection Cup with Ø10 mm Barbed Tube and Vent Port
- 2" Tri-clamp
- 2" Silicone Gasket
DISCLAIMER: Please note that in certain countries alcohol distillation and the possession of distilling equipment is illegal and permits/licenses may be required. For guidance or advice, contact your relevant local authorities.
